NEW QUESTION # 114

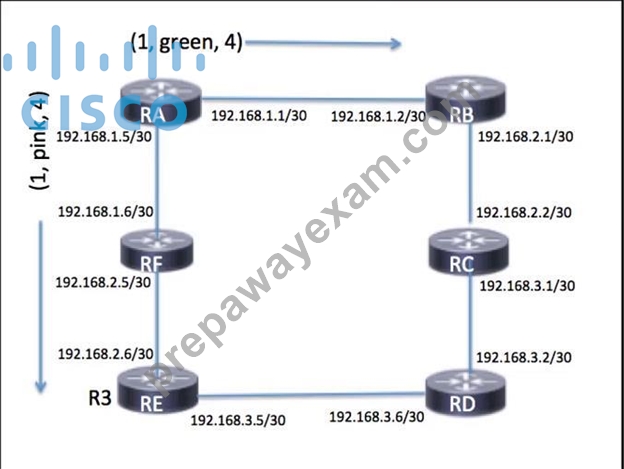

Refer to the exhibit.
The green policy is designed with low delay, and the pink policy is designed with low cost. What is the next hop for node A on its way to node D, with the objective of achieving a low delay?
- A. 192.168.3.6
- B. 192. 168.1.2
- C. 192.168.3.2
- D. 192.168.1.6
Answer: B
NEW QUESTION # 115

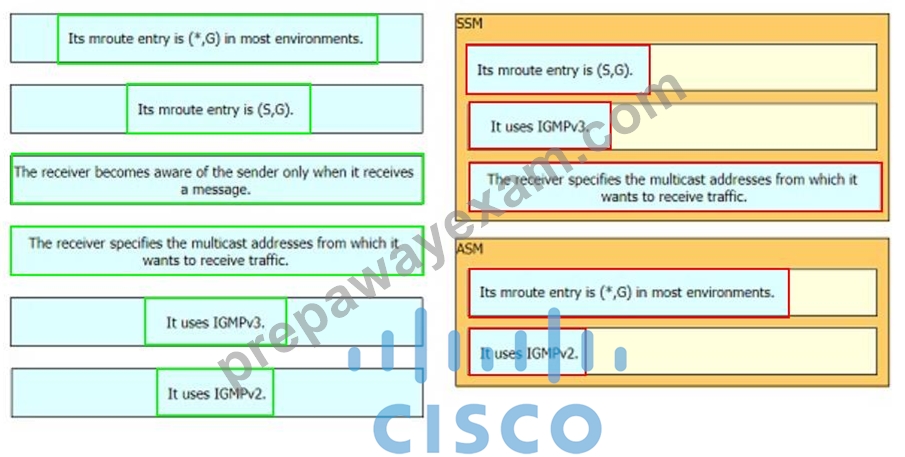

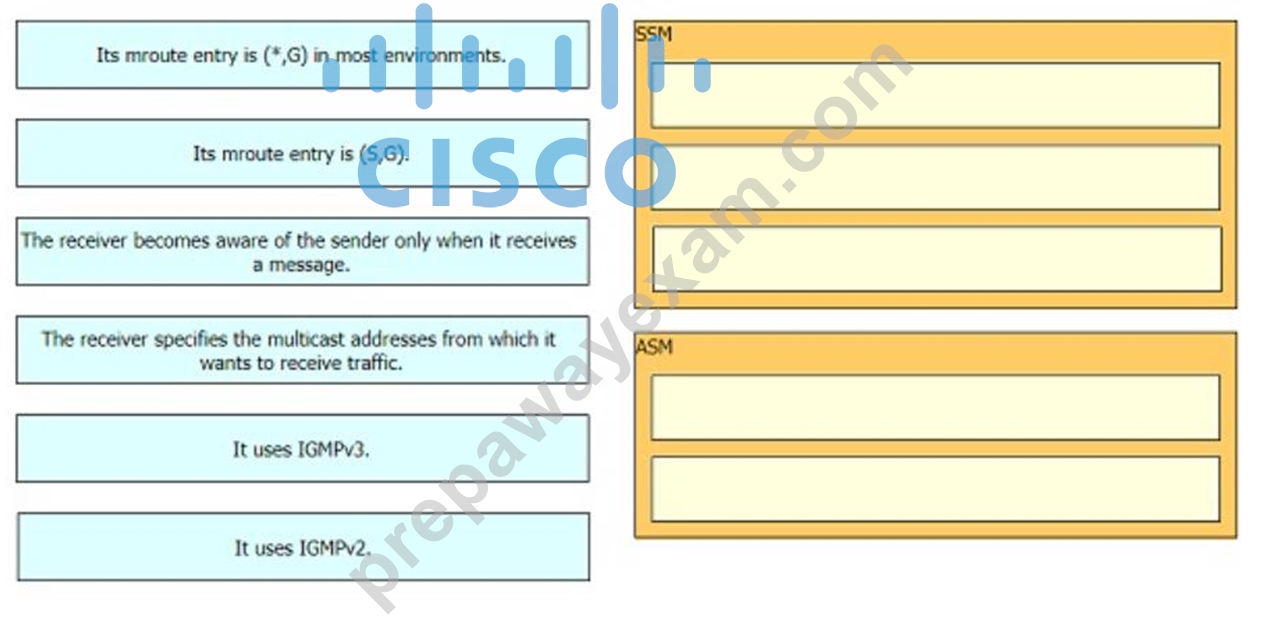

Drag and drop the features about multicast from the left onto the multicast protocols on the right. Not all options ate used.
Answer:
Explanation:
NEW QUESTION # 116

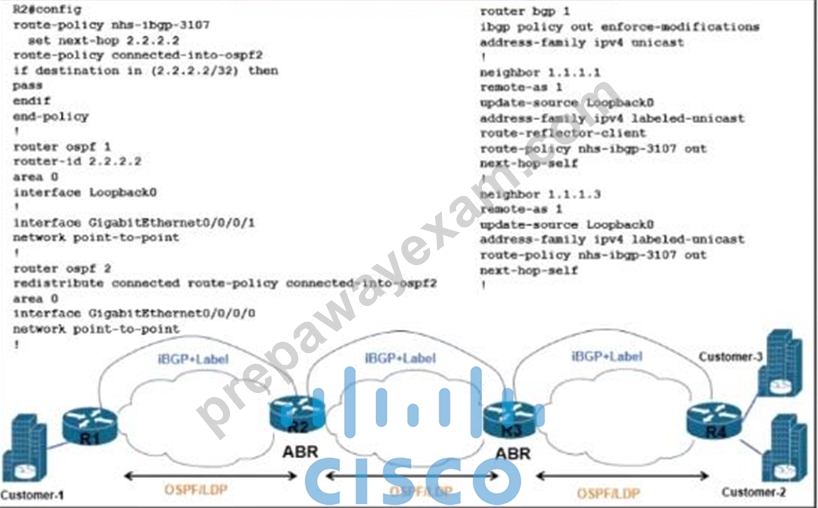

Refer to the exhibit.

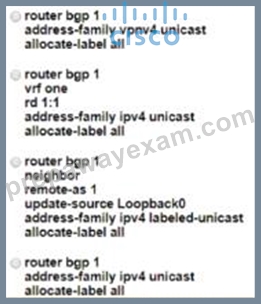

There is a connectivity issue between Customer-1 and Customer-2 File servers between the customers cannot send critical data R3 routes are missing from the routing table on the Customer-1 router All interlaces on Customer-1 are up Which configuration must be applied to router R2 to correct the problem?
- A. Option D
- B. Option C
- C. Option B
- D. Option A
Answer: A
NEW QUESTION # 117

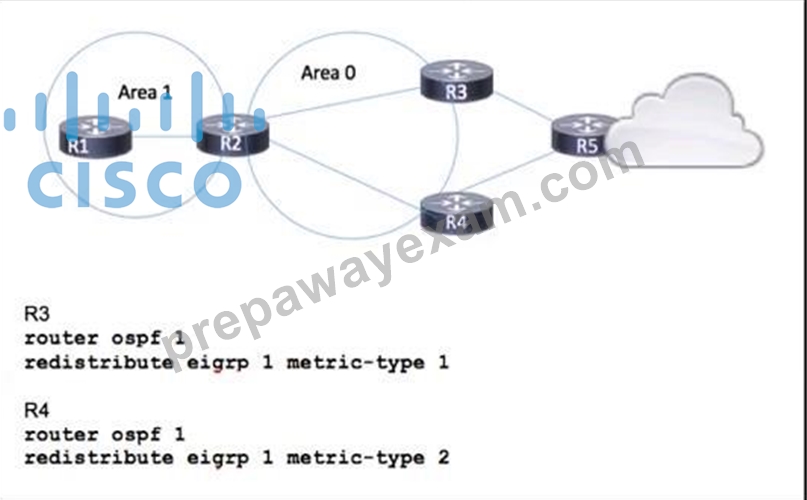

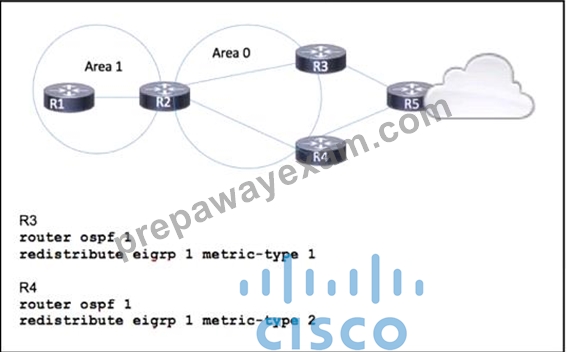

Refer to the exhibit. Routers R1, R2. R3, and R4 have been configured to run OSPF. and router R5 is running EIGRP Traffic from R1 to R5 is expected to pass via R4. but OSPF routing has calculated the best path via R3.
Which action corrects the problem?
- A. Reconfigure R1 in Area 0.
- B. Change the metric-type value on R3 to 2.
- C. Configure R3 to use metric-type 1 with a higher metric than R4.
- D. Configure R1 with a static route to the R5 networks and set R5 as the next hop.
Answer: B
NEW QUESTION # 118

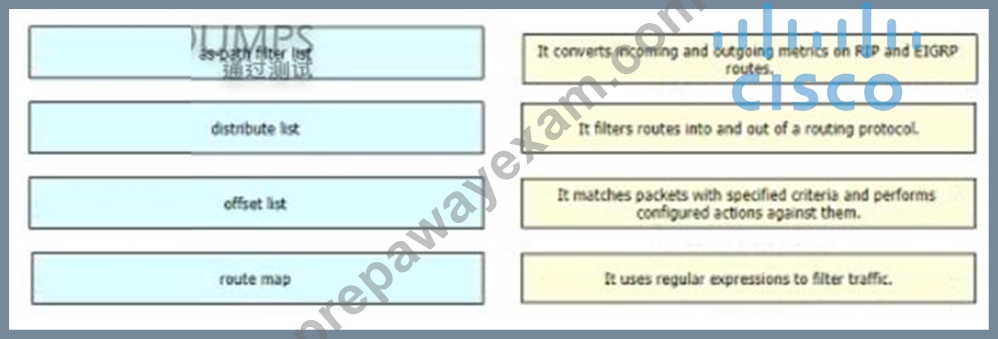

Drag and drop the route-manipulation methods from the left onto their features on the right
Answer:
Explanation:
NEW QUESTION # 119
Refer to the exhibit. Routers within the cluster are not receiving the desired prefixes.
What must be done to fix the issue?
- A. No client-to-client reflection must be enabled.
- B. Clients in that cluster must have full mesh connectivity between iBGP peers.
- C. No client-to-client must be disabled.
- D. Clients in that cluster must have full mesh connectivity between eBGP peers.
Answer: B
NEW QUESTION # 120
What is the characteristic of enabling segment routing for IGPs?
- A. Segment routing must first be enabled under the routing process and then globally.
- B. Segment routing must be enabled only under the routing process.
- C. Segment routing must first be enabled globally and then under the routing process.
- D. Segment routing must be enabled only globally.
Answer: C
NEW QUESTION # 121
Refer to the exhibit. The branch office in area 10 is connected to HQ via Frame Relay uplinks with bandwidth constraints. After a recent implementation of QoS on the R2 and R3 networks the system has been logging %SYS-2-MALLOCFAIL: Memory allocation of 65536 bytes failed from
0x224E321, alignment 0 messages. To reduce traffic load and memory utilization on R2 and R3 the network engineer configured R1 to announce only one user subnet per location by issuing the summary address 192.168.0.0 255.255.248.0 command en R1. However, the engineer noticed that router R2 still has two routes and a summary address from HQ and R3 also has two routes from HQ. Which two actions must the engineer take on R1 to fix the issue so that only one route is announced? (Choose two.)
- A. Configure a summary route for Level 1-Level 2 devices.
- B. Configure the subnet range with the network command under the IS-IS process.
- C. Configure RI as a Level 1 device.
- D. Configure a summary route for Level 1 devices.
- E. Redistribute both routes into the ISIS process.
Answer: A,D
NEW QUESTION # 122
Refer to the exhibit. Unified MPLS is implemented on this network to provide end-to-end services.
A network engineer noticed that R3 is failing to receive labels from R1. However, R2 is receiving labels from R1. R3 can ping R1 normally. Which action resolves the issue?
- A. Add the cdp run command to the link configuration between R1 and R3.
- B. Add the send-label keyword in the R1 neighbor statement for R3.
- C. Disable mpls Ip on the link between R1 and R3.
- D. Configure R1 to run Unified MPLS on both interfaces.
Answer: B
NEW QUESTION # 123
What is one of the purposes of a default Multicast Distribution Tree?
- A. to handle high-bandwidth source streams
- B. to offload traffic from data MDT
- C. to support control traffic between different VRFs
- D. to define the RP for PIM sparse mode and the different leafs
Answer: B
NEW QUESTION # 124
Which statement about BFD on Cisco IOS XR Software is true?
- A. Cisco IOS XR Software does not support BFD multihop for IPv4.
- B. BFD is not compatible between Cisco IOS XR and Cisco IOS Software.
- C. Cisco IOS XR router must use LDP to route back to the Cisco IOS router to establish the peer relationship.
- D. Cisco IOS XR router must use dynamic routing or a static route back to the Cisco IOS router to establish the peer relationship.
Answer: D
Explanation:
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/routers/asr9000/software/asr9k-r6-3/routing/configuration/ guide/b-routing-cg-asr9000-63x/b-routing-cg-asr9000-63x_chapter_0100.html
NEW QUESTION # 125

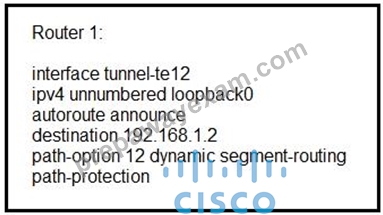

Refer to the exhibit.
Router 1 has established an SR-TE tunnel with router 2. Which statement describes this configuration?
- A. Router 1 has a list of labels used to explicitly lay out a path to router 2.
- B. Router 1 is the head-end tunnel and has dynamically chosen a path to router 2.
- C. Router 2 is the head-end tunnel and has explicitly set a path to router 1.
- D. Router 1 and router 2 have a bidirectional tunnel set up with dynamic path selection.
Answer: B
NEW QUESTION # 126
Refer to the exhibit.
Routers R1, R2. R3, and R4 have been configured to run OSPF. and router R5 is running EIGRP Traffic from R1 to R5 is expected to pass via R4. but OSPF routing has calculated the best path via R3. Which action corrects the problem?
- A. Reconfigure R1 in Area 0.
- B. Change the metric-type value on R3 to 2.
- C. Configure R3 to use metric-type 1 with a higher metric than R4.
- D. Configure R1 with a static route to the R5 networks and set R5 as the next hop.
Answer: B
NEW QUESTION # 127

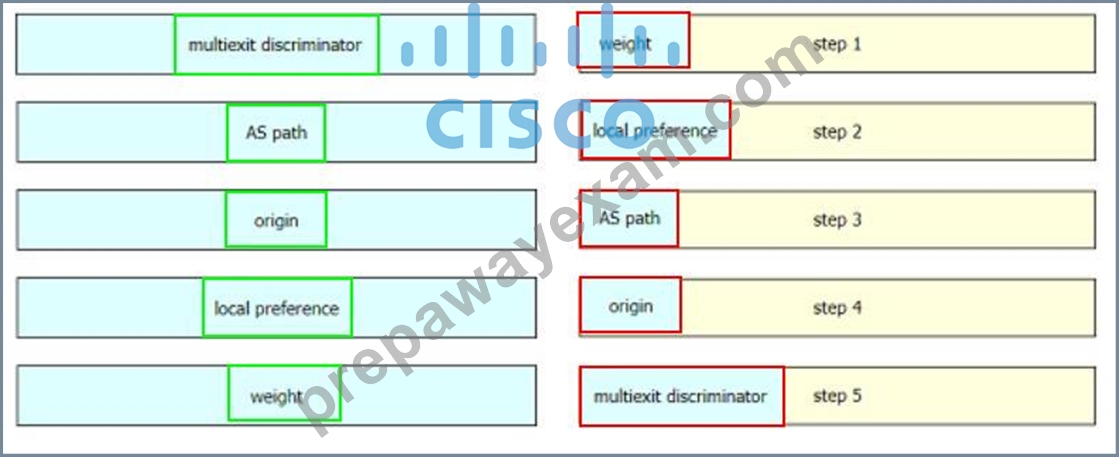

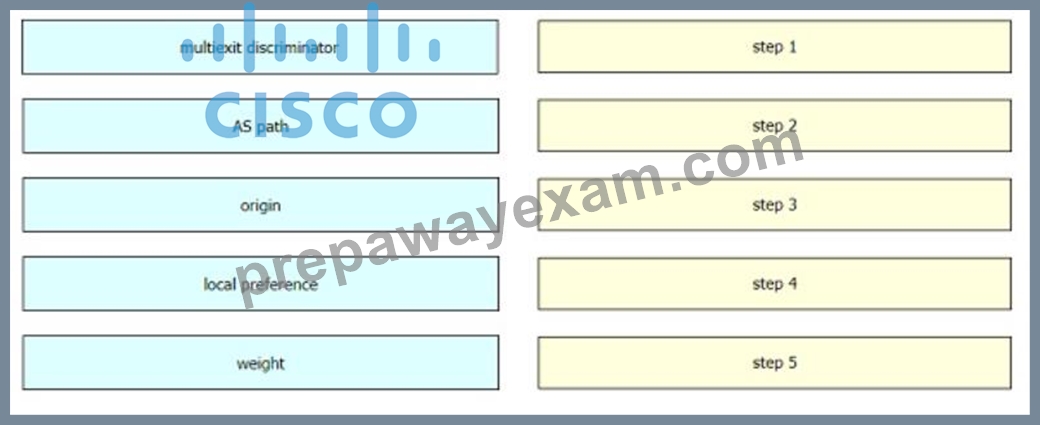

Drag and drop the BGP attributes from the left into the order of route selection preference on the right.
Answer:
Explanation:
NEW QUESTION # 128

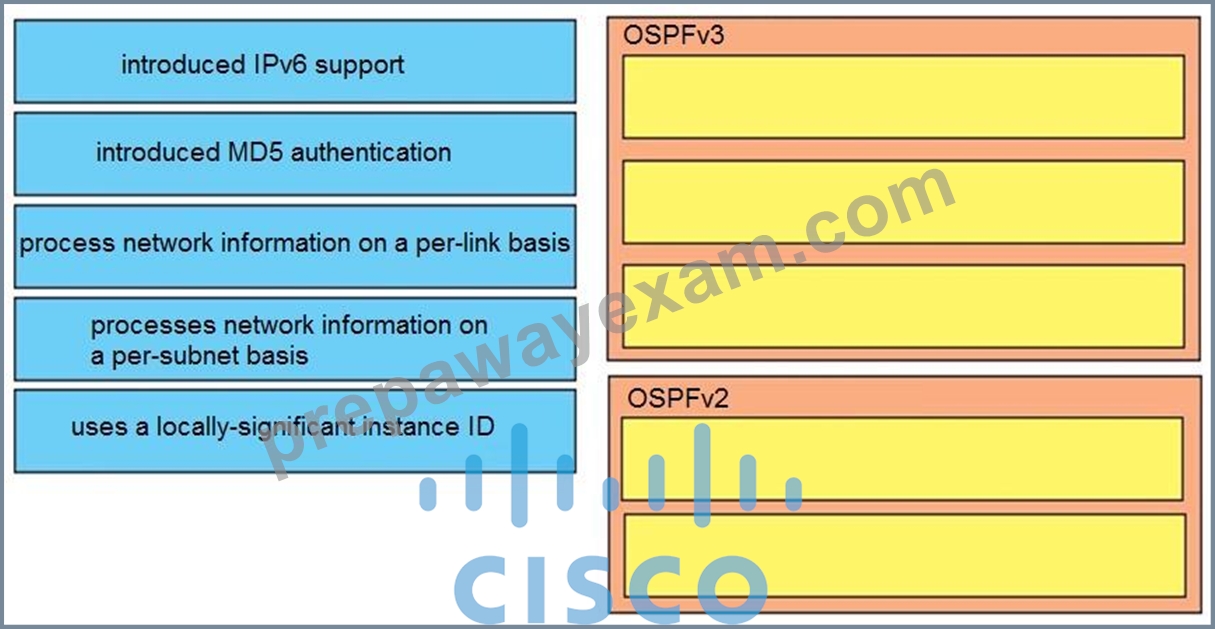

Drag and Drop Question

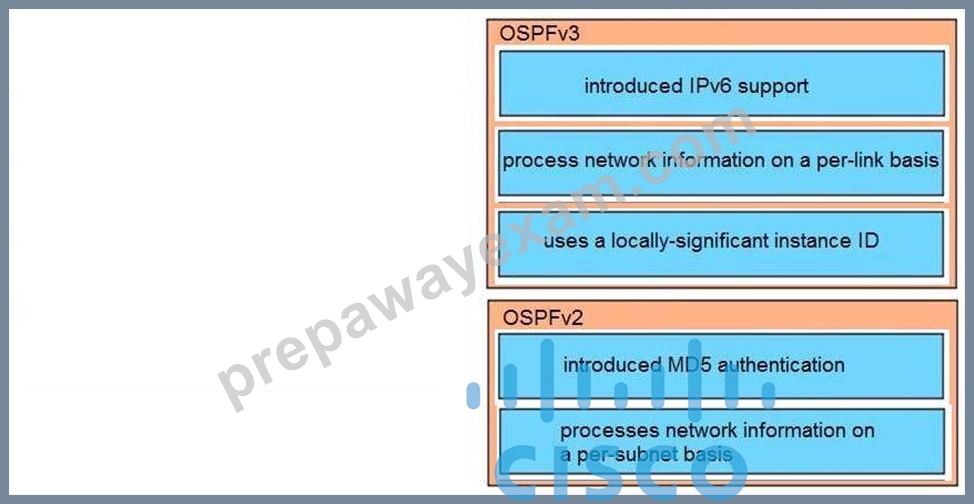

Compare different features between OSPFv2 and OSPFv3.
Drag and drop the descriptions of OSPF from the left onto the correct OSPF versions on the right.
Answer:
Explanation:
NEW QUESTION # 129
Refer to the exhibit. Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise configured correctly and operating normally. Which two statements describe the problem? (Choose two.)
- A. The two routers have password mismatch issues
- B. The two routers are in the same area
- C. The two routers have the same network ID
- D. The two routers are in different areas
- E. The two routers are in different subnets
Answer: D,E
NEW QUESTION # 130

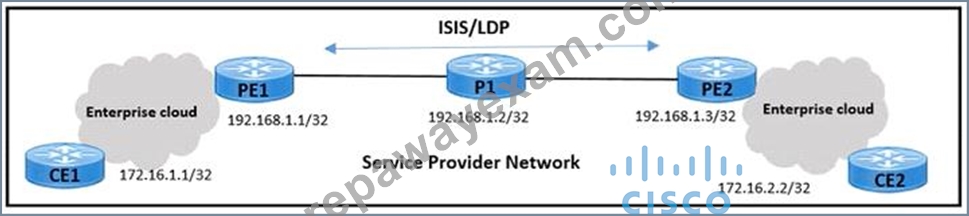

Refer to the exhibit.
Refer to the exhibit. An engineer working for a private telecommunication company with an employee id 4115 46 881 is enabling a segment routing solution with these requirements.
A service provider is using the default range for prefix SID.
PE1 must allocate the first SID from the default range for the loopback address PE1 and PE2 loopback SID allocation should have a minimum difference of 500.
Which configuration must be implemented to meet the requirements?
- A. Option D
- B. Option C
- C. Option B
- D. Option A
Answer: C
NEW QUESTION # 131

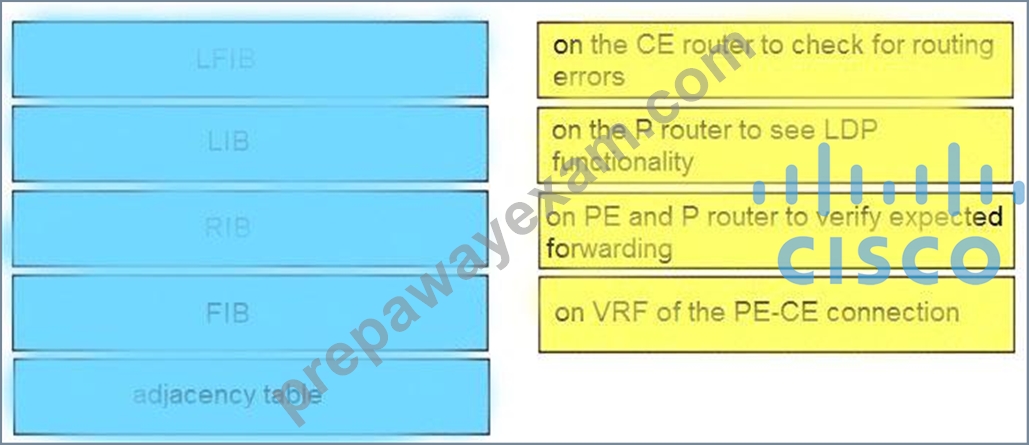

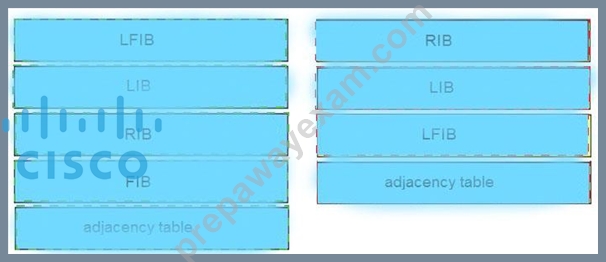

An engineer is troubleshooting end-to-end customer traffic across an MPLS VPN service provider network.
Which tasks should the engineer use to solve the routing issues? Drag and drop the table types from the left onto the most useful troubleshooting tasks/router types on the right. (Not all options are used.)
Answer:
Explanation:
NEW QUESTION # 132

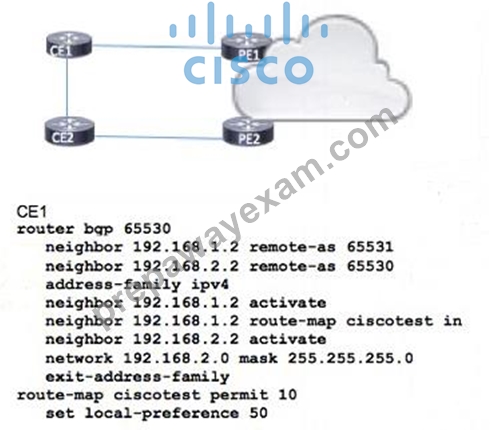

Refer to the exhibit.
Refer to the exhibit. Routers CE1 and CE2 are in AS 65530. which is multihomed for Internet access. An engineer expects inbound traffic to AS 65530 to arrive from PE1. but it is coming from PE2 instead PE1 and PE2 routers are connected with CE routers through the same bandwidth Which action must be taken to correct the problem?
- A. Set the local-preference value on router CEI to 100 or greater
- B. On router PEI , change the origin for routes that are redistributed from CEI to CE2.
- C. Configure router CEI to prepend the AS path to routes it receives from PE 1.
- D. On router CE2, configure inbound routes from PE2 to CE2 with a local-preference value of 50 or greater.
Answer: A
NEW QUESTION # 133

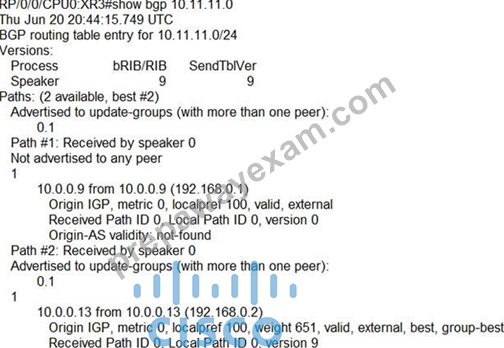

Refer to the exhibit. A network operator is getting the route for 10.11.11 0/24 from two upstream providers on #XR3.
The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of 10.0.0.9 as primary when available.
Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?
- A. lower local preference on the prefix coming from 192.168.0.2
- B. higher local preference on the prefix coming from 192.168.0.1
- C. weight of 0 on the prefix coming from 192.168.0.2
- D. weight of 100 on the prefix coming from 192.168.0.1
Answer: C
Explanation:
Weight is the first attribute in path selection algorithm and is 0 for eBGP routes by default. If we set it to 0, router will continue from weight to the bottom, and when comparing neighbor router IDs it will find 192.168.0.1 less than 192.168.0.2 and the path will be selected as the best.
NEW QUESTION # 134
After an engineer configures BGP in R1, it starts receiving this message
*Jun 29 13:30:50.122: %BGP-5-ADJCHANGE: neighbor 192.168.10.1 Down User reset Jun 29 13:30:52.341: %BGP-3-NOTIFICATION: sent to neighbor 192.168.10.1
2/6 (unacceptable hold time) 0 bytes
Which action makes the peering come back up again?
- A. Make a soft reset to the peer.
- B. Set up a hello timer higher.
- C. Set up a hold-down timer higher.
- D. Set up a minimum hold-down timer higher.
Answer: D
NEW QUESTION # 135

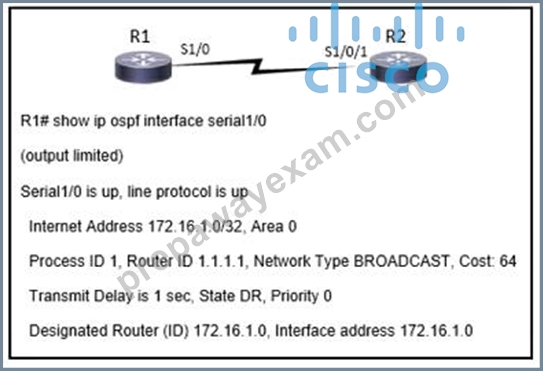

Refer to the exhibit.
While configuring router 2 with all the default values, a network engineer cannot see any route received in router 1. How should the engineer solve the issue?
- A. Set the network type in S1/0 to point-to-point.
- B. Modify the router ID to be the interface IP on the serial.
- C. Set up a priority different than 0 in the interface.
- D. Modify the IP address or mask of the interface to a valid one.
Answer: D
NEW QUESTION # 136
......
